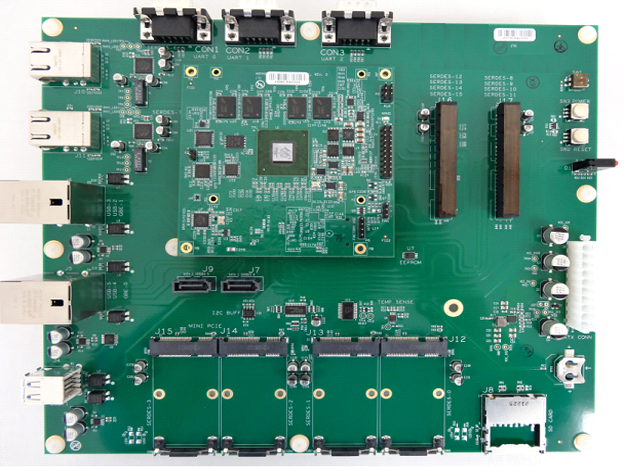

Sherwood COM Express Module



The Sherwood COM Express Module is a Highly Integrated Multi-core ARMv7 based SOC development/evaluation platform based on the high performance Marvell’s Armada XP MV78460 ARMv7 Quad core with integrated 2MB L2 cache that can run up to 1.6 GHz.
The module comes as a complete development kit, including a carrier card offering access to all of the SOC interfaces. The system enables users to design and develop innovative embedded products based on the Marvell’s MV78460 processor. The system has 2 GB (256 MB x 8) DDR3 RAM and 512 MB NAND Flash.
The System can be used by developers as is or Pactron can provide customized industrial designs, hardware and software for your specific needs. Separate Module can be purchased separately. Kit comes with the startup guide and hardware functional specs document. Main Module comes with heat spreader with built-in FAN

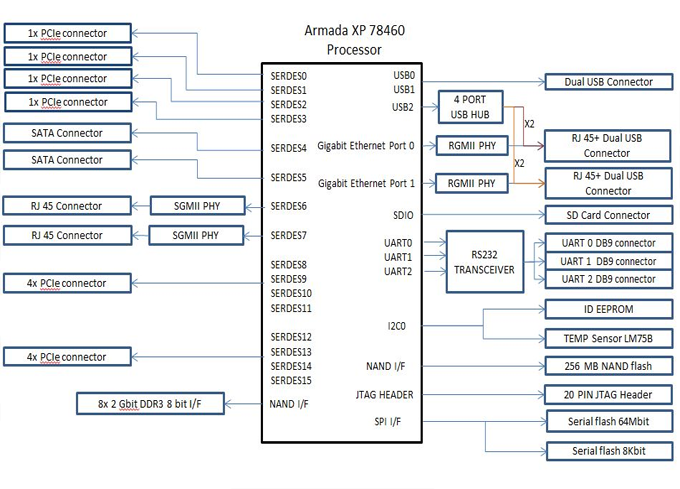

Functional Block Diagram







Features

    The system supports the following features:

  • Linux-3.2.40 ARM Linux Kernel
  • 72 bit DDR3 SDRAM running at 667 MHz clock rate
  • 8-bit 512 MB NAND flash boot support
  • 2 SATA Hard Drive Interfaces
  • 4-bit SD Card Interface
  • Two 1000Base-X interfaces, via RJ45 connector, based on Marvell 88E1512 PHY
  • Two 10/100/1000Base-T interfaces, via RJ45 connector, based on Marvell 88E1510 PHY
  • Four PCIe x1 Mini-PCIe Interface
  • Two PCIe x4 Interface
  • Six USB 2.0 Ports: two native, and four via an on-board Hub
  • Three RS-232 interfaces, via DB9



Applications:

    Pactron can customize industrial design, hardware and software for your specific needs:

  • Single Board Computer (external ATX power supply required)
  • Proxy Server
  • Security
  • Point of Sale (PoS)
  • Industrial controller
  • Access Point
  • Routers
  • VPN
  • Storage



Part Number.: Sherwood

Option features:

  • HDD or SSD
  • 802.11N,
  • BT,
  • 3G/4G
  • USB 3.0



About Pactron Inc.:

    Pactron designs and develops comprehensive and robust embedded systems that provide storage, wireless, mobile, networked, audio video, and Internet-connectivity for OEM markets.
    Pactron delivers integrated hardware and software platforms that are incorporated into end to end solutions, providing its customers minimized risk, accelerated time-to-market, reduced development costs, and enhanced design architecture.





For additional information, please send email to systemsolutions@pactroninc.com
