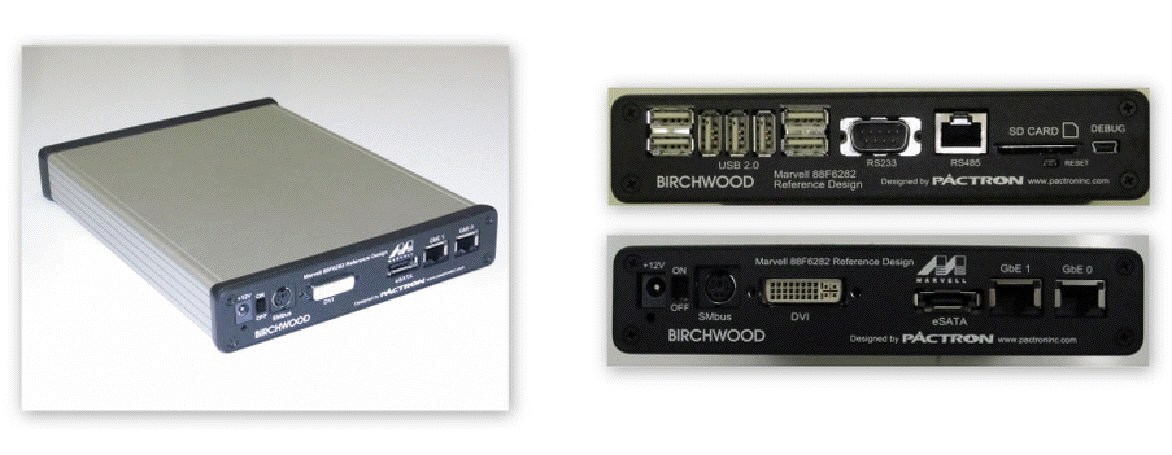

Birchwood Development Kit

The Birchwood System is a low power development/evaluation platform based on the high performance Marvell’s Armada 300 88F6282 ARMv5TE compliant core with integrated 16 KB L1 Cache and 256 KB L2 cache that can run up to 2.0 GHz. The system enables users to design and develop innovative embedded products based on the Marvell’s 88F6282 processor. The system has 512 MB (128 MB x 4) DDR3 RAM and 512 MB NAND Flash. The System can be used by developers as is or Pactron can provide customized industrial designs, hardware and software for your specific needs.

Birchwood Development Kit - Block diagram

Features:

The system supports the following features:

Linux-2.6.31.8 ARM Linux Kernel
Ubuntu 9.04 Root File System
16 bit DDR3 SDRAM running at 533 MHz clock rate
8-bit 512 MB NAND flash boot support
eSATA 3 Gbps data rate
SATA 2.5” Hard Drive Interface 3 Gbps Data Rate
4-bit SD Card Interface
Two Gigabit Ethernet (10/100/1000 Mbps) ports
Two PCIe x1 Interface (Standard and Mini-PCIe)
Seven USB 2.0 Ports
DVI Video Output
2x16 Character LCD
JTAG/UART0 Interface using Mini USB
RS232/RS485 for UART1 and SMB Bus

Applications:

Pactron can customize industrial design,

hardware and software for your specific needs:

Single Board Computer
Proxy Server
Security
Point of Sale (PoS)
Industrial controller
Access Point
Routers
VPN
Storage

For further details, please contact systemsolutions@pactroninc.com
