Pactron’s Q7 Carrier Board

Pactron’s Q7 Carrier Board meets the new Q7 Specification Revision 2.0, released on September 2012. It is targeted for the hardware and software validation of ARM processor based Q7 CPU modules. This compact version includes 2x USB 3.0 interfaces, 2x SATA II connectors, 1x PCIe connector, 1x Gigabit Ethernet, HDMI, JTAG and Audio interfaces.



prd1

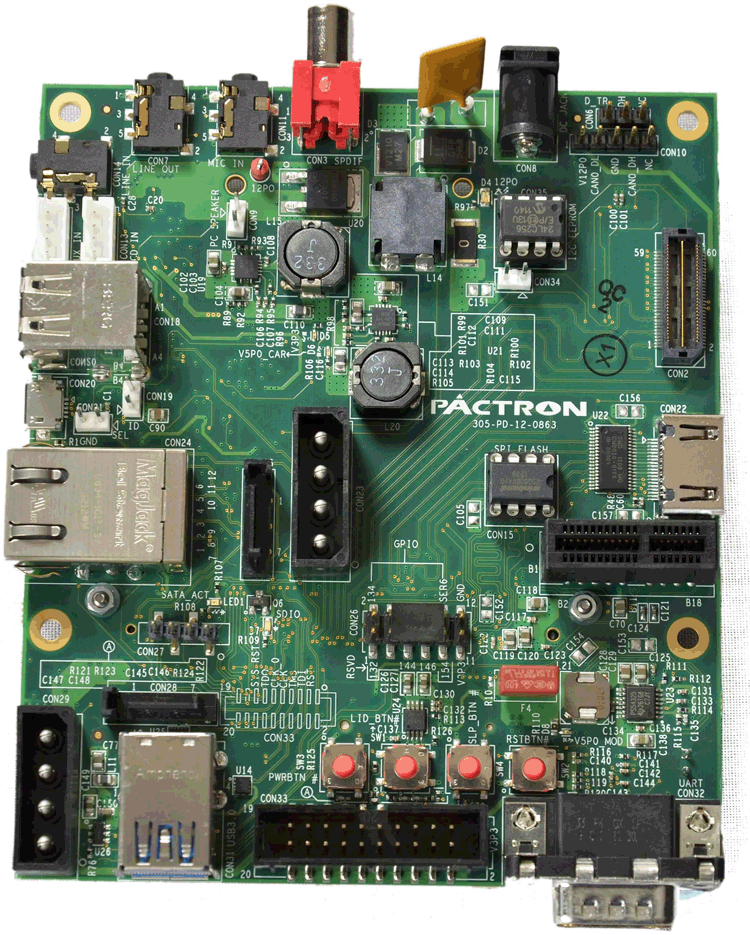

Pactron's Q7 Carrier Board



Technical Specifications



Supported Modules Pactron’s 88AP510 Q7 Module and all ARM processor based Q7 SoMs.
Expansion Slots 1x PCI e 1.1 slot
Mass Storage 2 x S-ATA connector 1xSD/ MMC Card Slot
I/O Features 2 x USB 2.0 Ports, 2 x USB 3.0 Ports, 1 x Gigabit/Fast Ethernet connector, 1 x GPIO 12-Pin Header, 1 x RS-2321 x CAN Interface, I2C Bus, SPI interface, JTAG Interface
Audio Features AC’97 Audio Codec, Line In, Mic In, Line Out Jacks, SPDIF Audio Interface
Video LVDS Interface - 60 pin header, HDMI Connector
Power 12V Power jack, Power, Lid, Sleep and Reset Button, Power On Status LED
Dimensions 119.4mm x 101.6 mm (4.7” x 4”)





prd1

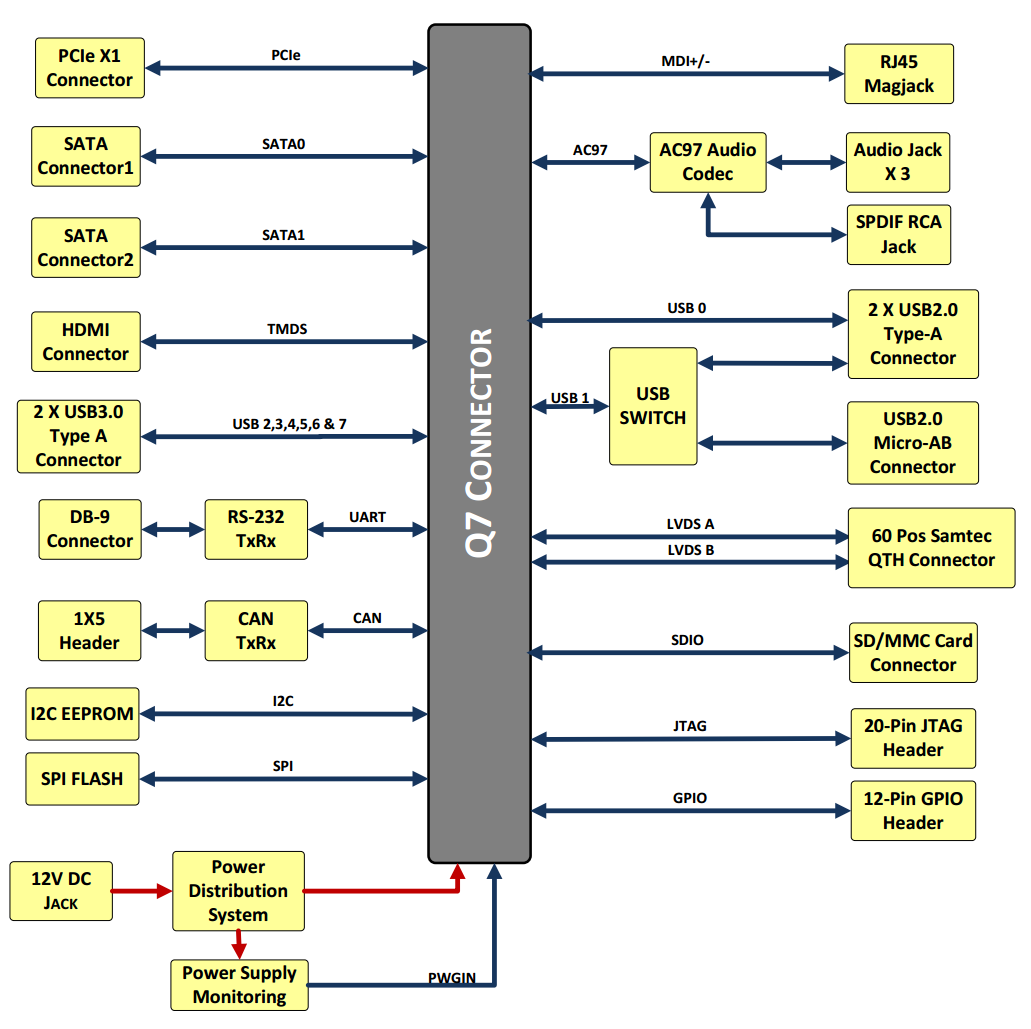

Pactron's Q7 Carrier Board - Block Diagram





prds

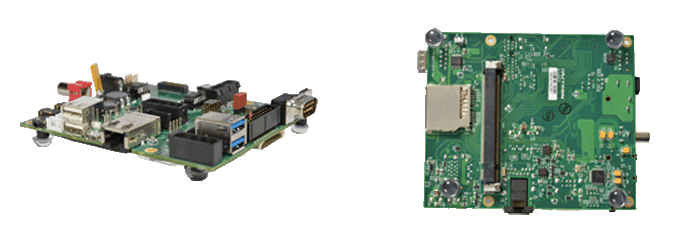

Pactron's Q7 Carrier Board





For further details, please contact systemsolutions@pactroninc.com
